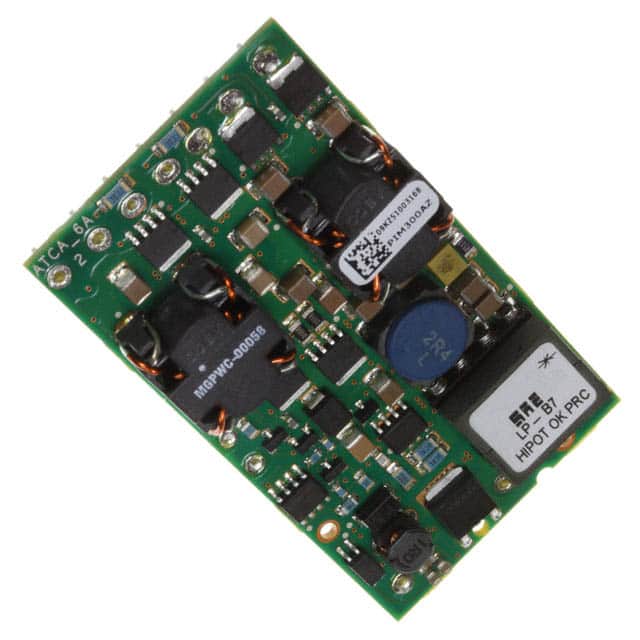

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | PIM300AZ |
| Manufacturer: | GE Critical Power (ABB Embedded Power) |
| Part of Description: | DC DC CONVERTER -48V 300W |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 1926 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | PIM300X (300W) |
| Package | Tray |
| Part Status | Obsolete |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | -38V |
| Voltage - Input (Max) | -75V |
| Voltage - Output 1 | -48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 6.25A, 1.6A |
| Power (Watts) | 300 W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | OCP, OTP, OVP, UVLO |
| Operating Temperature | -5°C ~ 85°C |
| Efficiency | 98% |
| Mounting Type | Through Hole |
| Package / Case | Module |
| Size / Dimension | 2.78" L x 1.45" W x 0.50" H (70.6mm x 36.8mm x 12.7mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Stock Status: 1926
Minimum: 1
Call for price or submit a RFQ
