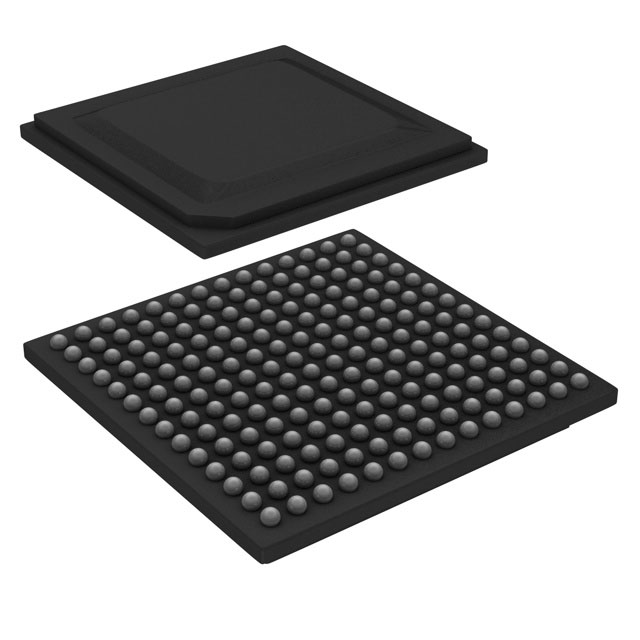

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | AD9689BBPZ-2600 |
| Manufacturer: | XinYun Electronics |
| Part of Description: | IC ADC 14BIT PIPELINED 196BGA-ED |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 34 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | - |
| Package | Tray |
| Part Status | Active |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 2.6G |
| Number of Inputs | 2 |
| Input Type | Differential |
| Data Interface | JESD204B |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 0.95V ~ 1V, 1.85V ~ 1.95V, 2.44V ~ 2.56V |
| Voltage - Supply, Digital | 0.95V ~ 1V, 1.85V ~ 1.95V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 196-LFBGA Exposed Pad |
| Supplier Device Package | 196-BGA-ED (12x12) |
| Mounting Type | Surface Mount |
Stock Status: 34
Minimum: 1
Price: $1461.60000
