Image is for reference, please contact us to get the real picture

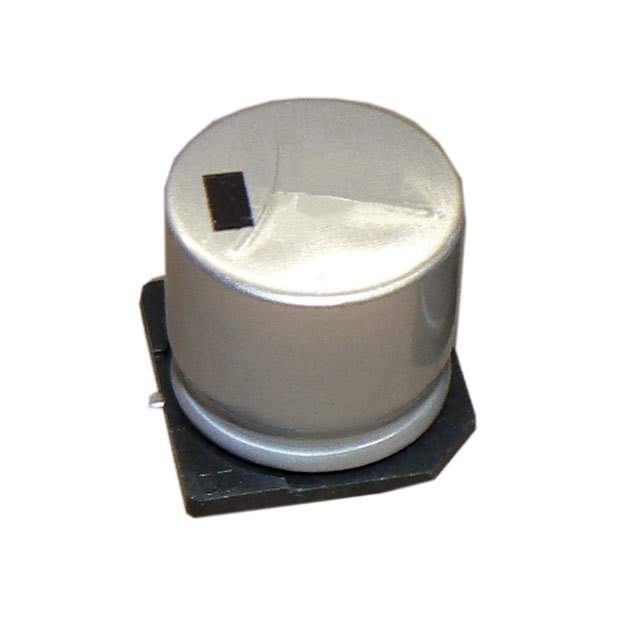

| Manufacturer Part Number: | AFK336M50E16B-F |
| Manufacturer: | Cornell Dubilier Electronics |
| Part of Description: | CAP ALUM 33UF 20% 50V SMD |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 1436 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | AFK |
| Package | Bulk |
| Part Status | Discontinued at Digi-Key |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 680mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Ripple Current @ Low Frequency | 146.2 mA @ 120 Hz |
| Ripple Current @ High Frequency | 195 mA @ 100 kHz |
| Impedance | 680 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
| Surface Mount Land Size | 0.327" L x 0.374" W (8.30mm x 9.50mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Stock Status: 1436
Minimum: 1
Call for price or submit a RFQ
