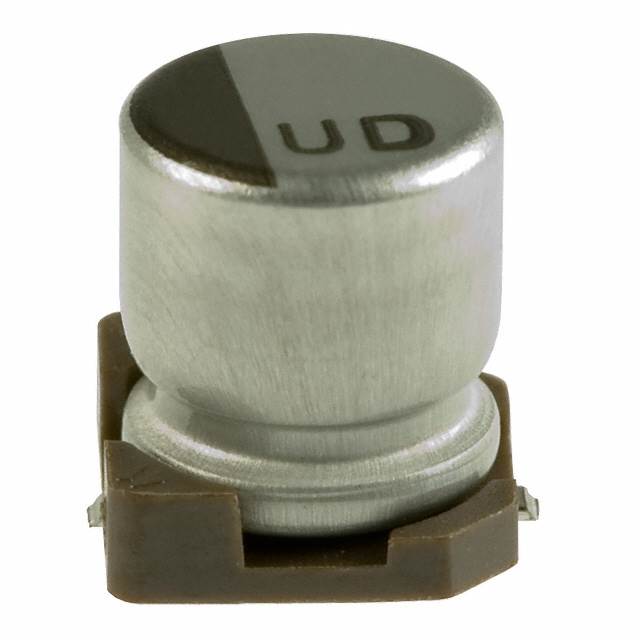

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | UUD1A330MCL1GS |
| Manufacturer: | Nichicon |
| Part of Description: | CAP ALUM 33UF 20% 10V SMD |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 9665 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | UUD |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 75 mA @ 120 Hz |
| Ripple Current @ High Frequency | 150 mA @ 100 kHz |
| Impedance | 760 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Stock Status: 9665
Minimum: 1
Price: $0.52000
