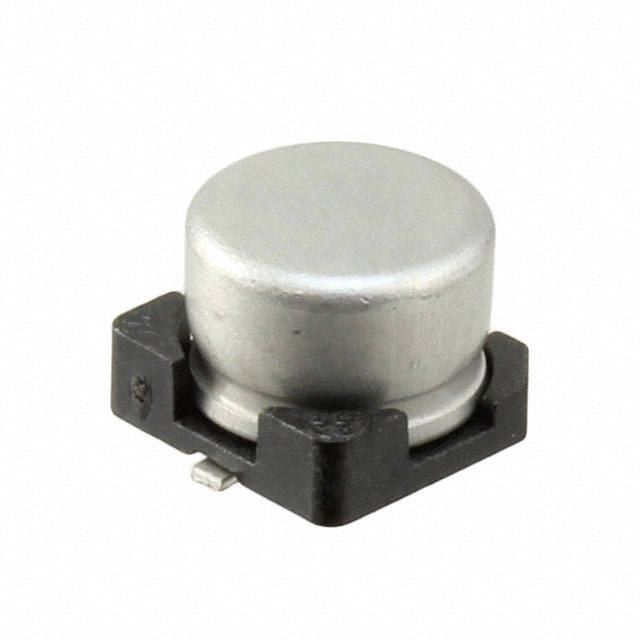

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | UZE1E3R3MCL1GB |
| Manufacturer: | Nichicon |
| Part of Description: | CAP ALUM 3.3UF 20% 25V SMD |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 2422 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | UZE |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Obsolete |
| Capacitance | 3.3 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 12 mA @ 120 Hz |
| Ripple Current @ High Frequency | 18 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.156" (3.95mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Stock Status: 2422
Minimum: 1
Call for price or submit a RFQ
