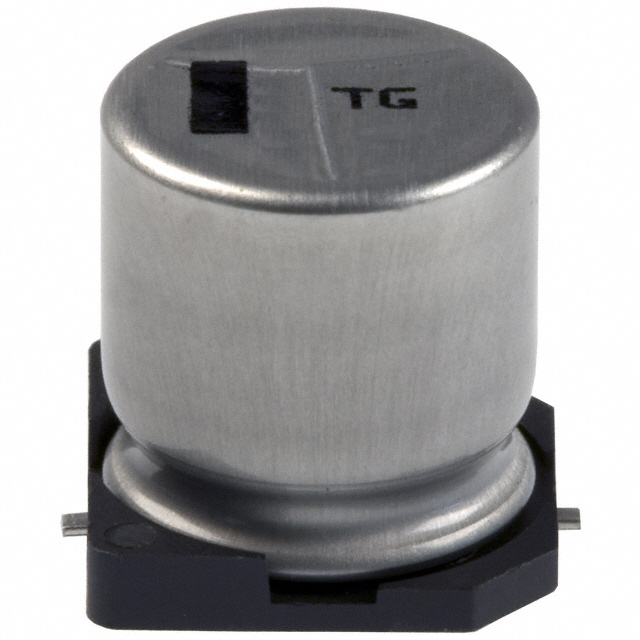

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | EEV-TG1V331Q |
| Manufacturer: | Panasonic |
| Part of Description: | CAP ALUM 330UF 20% 35V SMD |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 2880 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | TG |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 120mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 520 mA @ 120 Hz |
| Ripple Current @ High Frequency | 800 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.531" (13.50mm) |
| Surface Mount Land Size | 0.531" L x 0.531" W (13.50mm x 13.50mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Stock Status: 2880
Minimum: 1
Price: $1.76000
