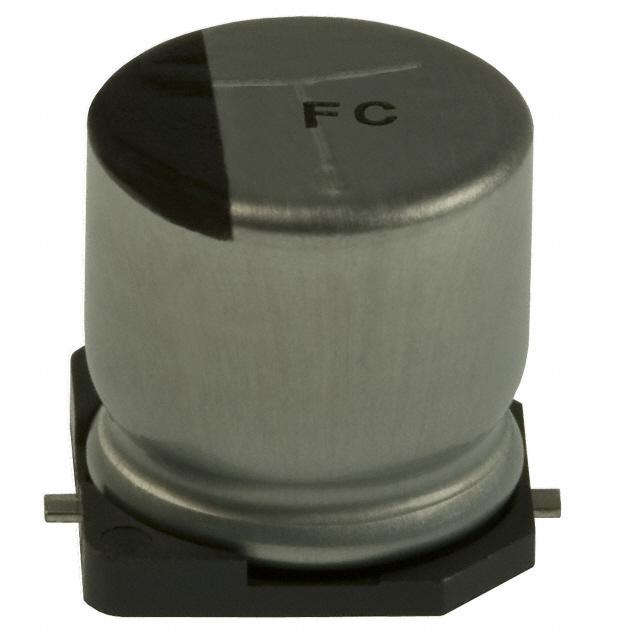

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | EEV-FC1H470P |
| Manufacturer: | Panasonic |
| Part of Description: | CAP ALUM 47UF 20% 50V SMD |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 2879 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | FC |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Obsolete |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 375 mA @ 120 Hz |
| Ripple Current @ High Frequency | 500 mA @ 100 kHz |
| Impedance | 300 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Stock Status: 2879
Minimum: 1
Call for price or submit a RFQ
