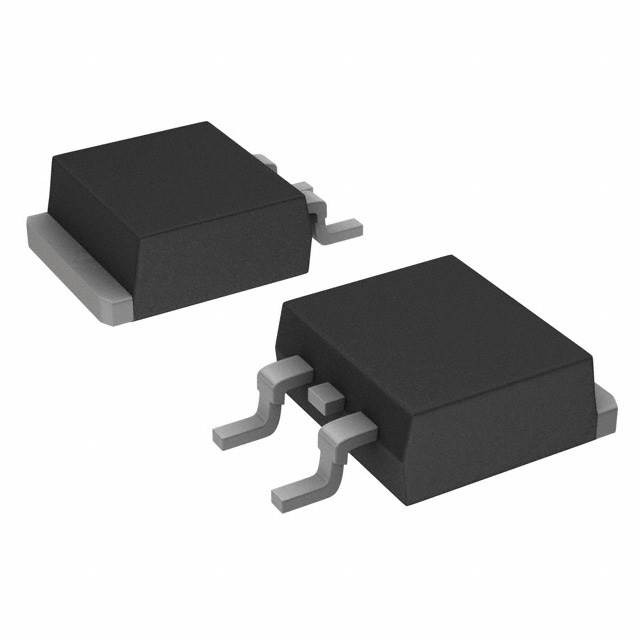

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | D2TO020CR4300KTE3 |
| Manufacturer: | Vishay / Sfernice |
| Part of Description: | RES 0.43 OHM 10% 20W TO263 |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 717 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | D2TO20 |
| Package | Tube |
| Part Status | Active |
| Resistance | 430 mOhms |
| Tolerance | ±10% |
| Power (Watts) | 20W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Moisture Resistant, Non-Inductive |
| Temperature Coefficient | ±250ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263 (D²Pak) |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.398" L x 0.346" W (10.10mm x 8.80mm) |
| Height - Seated (Max) | 0.189" (4.80mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
Stock Status: 717
Minimum: 1
Price: $7.46120
