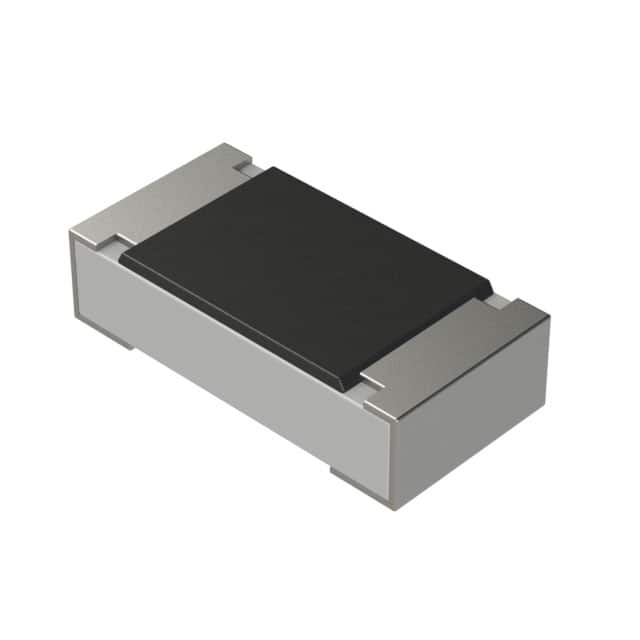

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | CSR0603JK80L0 |
| Manufacturer: | Stackpole Electronics, Inc. |
| Part of Description: | RES 0.08 OHM 5% 1/8W 0603 |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 78171 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | CSR |
| Package | Tape & Reel (TR) |
| Part Status | Active |
| Resistance | 80 mOhms |
| Tolerance | ±5% |
| Power (Watts) | 0.125W, 1/8W |
| Composition | Thick Film |
| Features | Current Sense |
| Temperature Coefficient | ±300ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Ratings | - |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
Stock Status: 78171
Minimum: 1
Price: $0.06400
