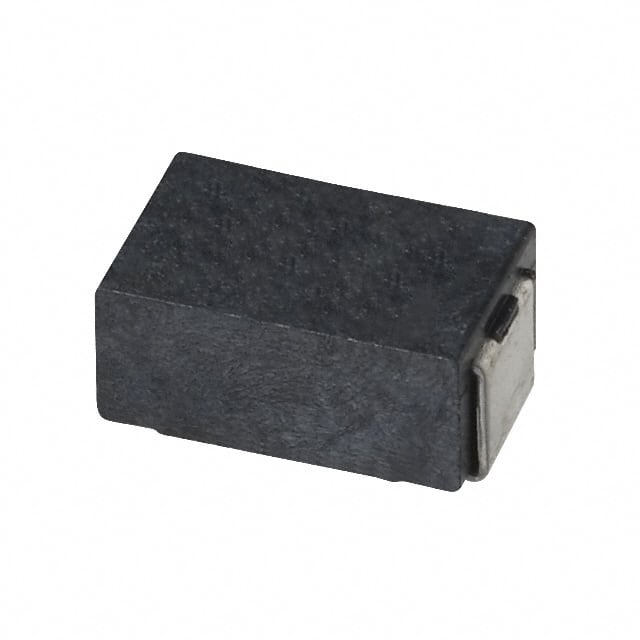

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | WSC251510R00FTA |
| Manufacturer: | Vishay / Dale |
| Part of Description: | WSC2515 10 1% R86 |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 4716 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | WSC |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Resistance | 10 Ohms |
| Tolerance | ±1% |
| Power (Watts) | 1W |
| Composition | Wirewound |
| Features | Automotive AEC-Q200, Pulse Withstanding |
| Temperature Coefficient | ±50ppm/°C |
| Operating Temperature | -65°C ~ 275°C |
| Package / Case | 2515 J-Lead |
| Supplier Device Package | 2515 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.250" L x 0.150" W (6.35mm x 3.81mm) |
| Height - Seated (Max) | 0.125" (3.17mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
Stock Status: 4716
Minimum: 1
Price: $1.07000
