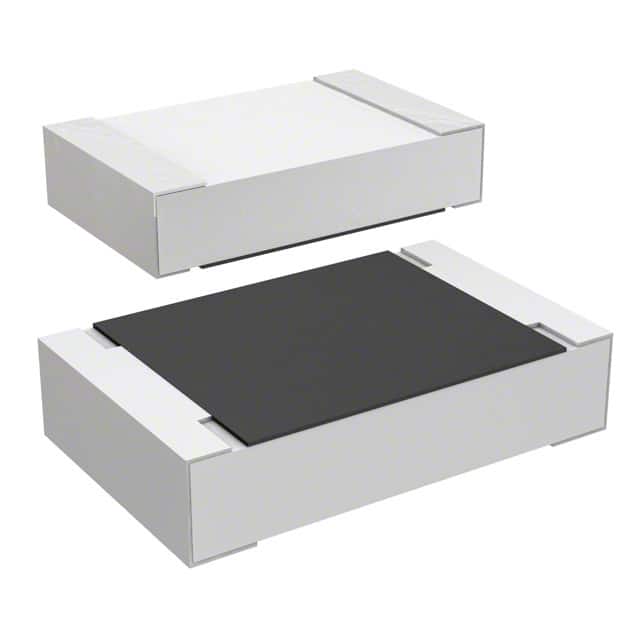

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | RCWL0805R560JNEA |
| Manufacturer: | Vishay / Dale |
| Part of Description: | RES 0.56 OHM 5% 1/8W 0805 |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 37636 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | RCWL |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Resistance | 560 mOhms |
| Tolerance | ±5% |
| Power (Watts) | 0.125W, 1/8W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Current Sense, Moisture Resistant |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.020" (0.50mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
Stock Status: 37636
Minimum: 1
Price: $0.13300
