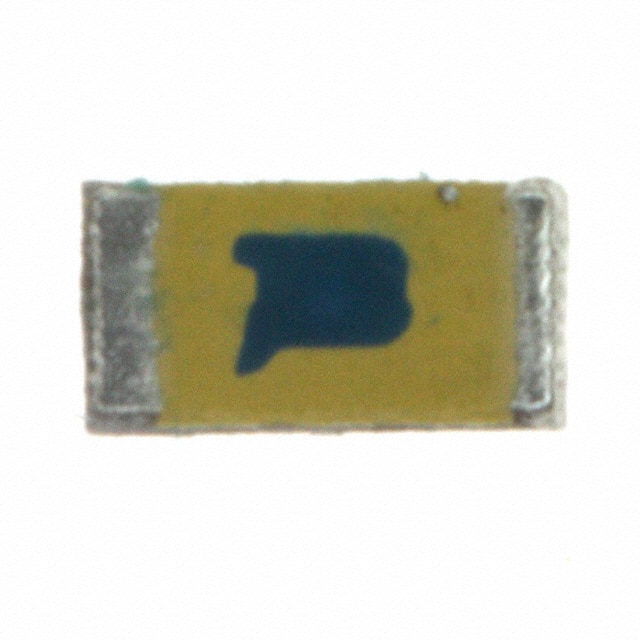

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | CHF1206CNT500LW |
| Manufacturer: | J.W. Miller / Bourns |
| Part of Description: | RES SMD 50 OHM 5% 20W 1206 |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 771 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | CHF - RF Power |
| Package | Bulk |
| Part Status | Obsolete |
| Resistance | 50 Ohms |
| Tolerance | ±5% |
| Power (Watts) | 20W |
| Composition | Thick Film |
| Features | RF, High Frequency |
| Temperature Coefficient | - |
| Operating Temperature | -55°C ~ 150°C |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Ratings | - |
| Size / Dimension | 0.120" L x 0.062" W (3.05mm x 1.57mm) |
| Height - Seated (Max) | 0.025" (0.64mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
Stock Status: 771
Minimum: 1
Call for price or submit a RFQ
