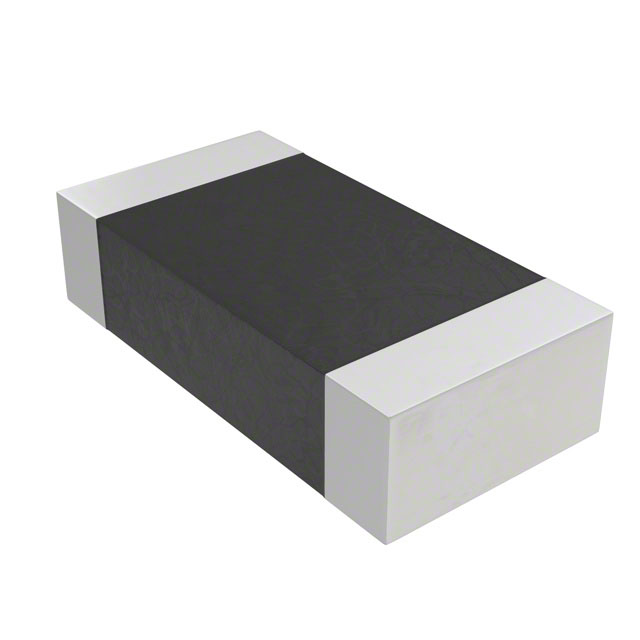

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | AC0402JR-07560RL |
| Manufacturer: | Yageo |
| Part of Description: | RES SMD 560 OHM 5% 1/16W 0402 |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 50046 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | AC |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Resistance | 560 Ohms |
| Tolerance | ±5% |
| Power (Watts) | 0.063W, 1/16W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Moisture Resistant |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.015" (0.37mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
Stock Status: 50046
Minimum: 1
Price: $0.10000
